Product Description

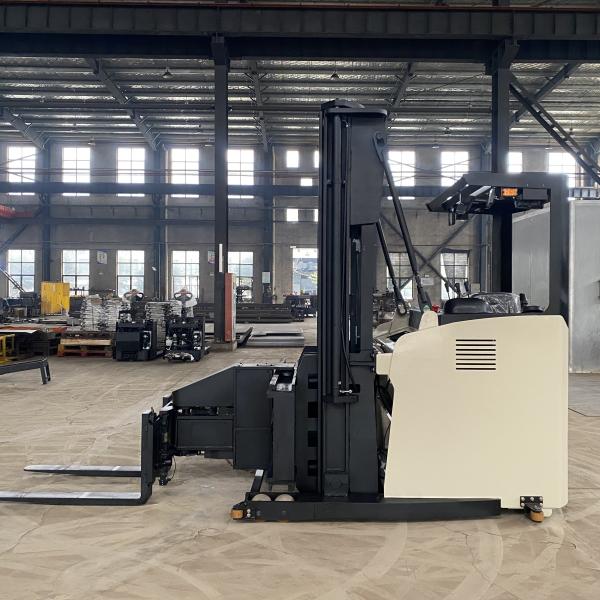

New Style Forklift CE Certification 1.5 Ton 2 Ton Electric 3 way Pallet Stacker Forklift
VNA forklift is a forklift that can pass through very narrow aisles, also known as "very narrow aisle forklift".The most important feature of VNA forklift is that it can achieve high efficiency, accurate and safe storage and retrieval of goods in the warehouse aisle, which can maximise the density of storage of goods, and greatly improve the utilisation rate of warehouse capacity.The application range of VNA forklift is very wide, especially suitable for places where the storage density of goods is large and requires high-density racking inventory. VNA forklifts have a very wide range of applications, especially suitable for goods varieties of single storage density, warehouse area is relatively small and the need for high-density racking inventory places. At present, VNA forklift trucks have been widely used in electronics, medicine, daily necessities, food and other industries.
Main Features
1. Extremely narrow operating aisles: VNA forklift trucks are usually designed as very narrow forklift trucks that can operate freely in warehouse aisles that are very narrow in width, a feature that makes it possible to make full use of the vertical space in the warehouse and increase storage density.
2. Height Adjustable: VNA forklift trucks can usually reach a very high lifting height, making them suitable for high warehouse rooms and situations where vertical storage is required.
3. Steering Mechanism: VNA forklift trucks are often equipped with a unique steering mechanism that allows their operators to rotate in very narrow aisles, increasing ease of operation.
4. Increased Efficiency: Because VNA forklift trucks have a higher degree of manoeuvrability and height than conventional forklift trucks, they are often able to handle more loads per unit of time, which improves work efficiency.
Specification
| Standard |
| 1.1 | Manufacturer | | KAD |
| 1.2 | Model | | VNA10 VNA15 VNA20 |
| 1.3 | Power type | | Battery |
| 1.4 | Operation type | | Sit-down |
| 1.5 | Rated capacity | Q(kg) | 1000 |
| 1.6 | Load center | c(mm) | 600 |
| 1.7 | Front overhang | x(mm) | 670 |
| 1.8 | Wheelbase | y(mm) | 1700 |
| Weight |
| 2.1 | Service weight(incl. battery) | | 5520 |
| Tire |
| 3.1 | Wheel type,drive side/load side | | PU |
| 3.2 | Tyre size,load side | mm | 140 ×127 |
| 3.3 | Tyre size,drive side | mm | p380 ×165 |
| 3.4 | Balance wheel size | mm | $204×76 |
| 3.5 | Wheel quantity,front/rear(x= drive) | | 4/1x+2 |
| 3.6 | Wheel tread,drive side | b10(mm) | 726 |
| 3.7 | Wheel tread,load side | b11(mm) | 1280 |
| Dimension |
| 4.1 | Height of mast closed | h1(mm) | 4318 |
| 4.2 | Full free lifting height | h2(mm) | 3255 |
| 4.3 | The Max. lifting height | h3(mm) | 7500 |
| 4.4 | Height of mast with backrest | h4(mm) | 8550 |
| 4.5 | Overhead guard height | h6(mm) | 2300 |
| 4.6 | Station board height | h7(mm) | 355 |
| 4.7 | Overall length | l1(mm) | 2985 |
| 4.8 | Overall width | b1(mm) | 1550 |
| 4.9 | fork dimentions | l/e/s(mm) | 1200/125/50 |
| 4.10 | Installation level | | ll Level A Model |
| 4.11 | Width across forks | b5(mm) | 265~760 |
| 4.12 | minimum guound clearance | m1(mm) | 40 |
| 4.13 | Stacking channel width (pallet 1000x1000) | Ast(mm) | 1600 |
| 4.14 | Stacking channel width (pallet 1000x1200) | Ast(mm) | 1650 |
| 4.15 | Spacing of rack beams | mm | 1700 |
| 4.16 | Width of main aisle | mm | 3800 |
| 4.17 | Turning radius | Wa(mm) | 1980 |
| Function |
| 5.1 | Drive speed, load/unload | km/h | 7.5/8 |
| 5.2 | Lift speed, load/unload | mm/s | 200/250 |
| 5.3 | Lower speed, load/unload | mm/s | 340/340 |
| 5.4 | Brake type | | Mechanical |
| Driving |
| 6.1 | Driving motor power(S2-60min) | kw | 5.5 AC |
| 6.2 | Lifting motor power(S315%) | kw | 8.6 AC |
| 6.3 | Battery voltage/capacity | V/Ah | 24/560 |
| 6.4 | Battery weight | kg | 740 |
| 6.5 | Steering system | | EPS |
| Other |
| 7.1 | Battery replace method | | Side pull type |
What is a VNA 3-way forklift truck?
A VNA (Very Narrow Aisle) 3-way forklift is a specialized type of forklift designed for highly efficient and precise operation in very narrow aisles. These forklifts are specifically engineered to navigate aisles that are considerably narrower than those typically managed by standard reach trucks or even traditional VNA forklifts.
The "3-way" designation refers to the forklift's unique ability to operate in three directions:
Forward and Backward: Like traditional forklifts, a VNA 3-way forklift can move forward and backward along the aisle to access storage locations.
Sideways: Unlike conventional forklifts, VNA 3-way forklifts have the capability to travel sideways. This lateral movement allows for precise positioning of the forklift, enabling operators to access pallets stored in very narrow aisles.
Rotational: Some VNA 3-way forklifts also feature a rotating mast or carriage, which allows the forks to rotate up to 180 degrees. This rotational capability further enhances maneuverability and enables the forklift to handle loads from multiple directions without repositioning the entire vehicle.
These three-way capabilities make VNA 3-way forklifts ideal for maximizing storage density in warehouses and distribution centers with limited space. They can navigate aisles as narrow as 1.6 meters (around 5 feet) while still efficiently retrieving and storing pallets. By utilizing these forklifts, businesses can optimize their storage space, improve operational efficiency, and reduce the need for manual labor in material handling tasks.
